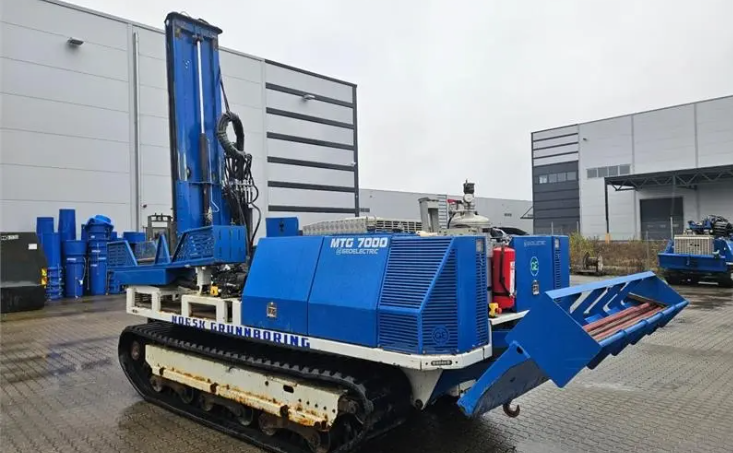

Driller Geoelectric MTG 7000

Category

Details

The MTG SERIES is a third generation geotechnical drilling machine. The machines are built to be user-friendly and withstand hard work. The GMT 7000 is the largest and most powerful machine in the MTG series. With this machine, you can perform all geotechnical probing and deep drilling, as well as diamond core drilling and sampling.

The machine starts and works with remote control. The right belt motor is difficult to get and “react” in reverse – must be overhauled / replaced. The machine alerts for service. Various drill rods included.

• Machine: 110 kW diesel engine
• 450 mm wide rubber tracks
• 3 pairs of bogies – 12 support wheels
• 2 drive wheels
• 2 hydraulic tension wheels
• Stroke length: 2,400 mm / 2,700 mm
• Feed force: 140 kN (Theoretical)
• Lifting force: 180 kN (Theoretical)
• Double gear drill with hydraulic side shift
• Rod lock: One side clamp lock or two locks with opening movement
• The mast can be tilted sideways 12 ° in both directions
• Gear 1: 8000 Nm / 4000 Nm 0–35 rpm / 0–70 rpm (Therefore variation 3100 Nm 0–80 rpm, 1600 Nm 0–160 rpm)
• Gear 2: 2800 Nm, 0–90 rpm

Dimensions
